Description

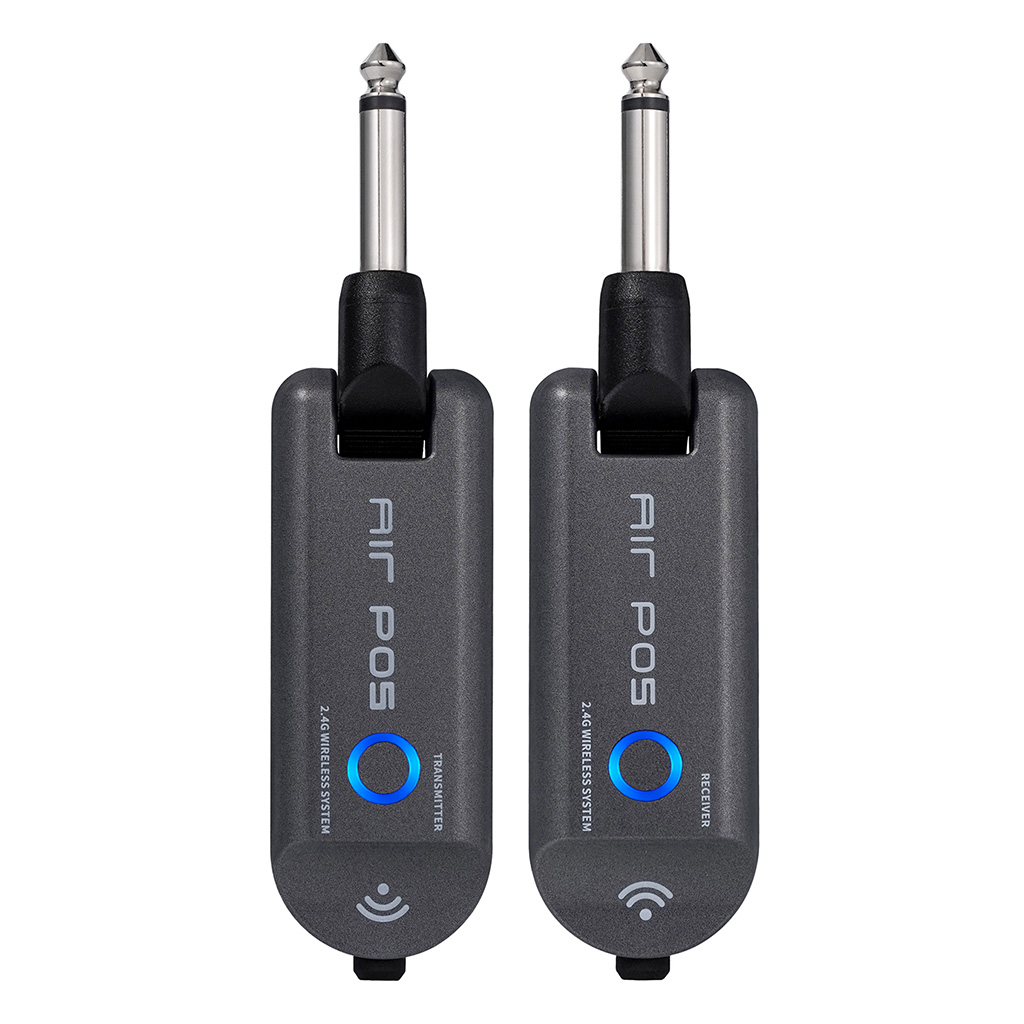

Mooer AP05 Instrument Wireless System

The MOOER AIR P05 is a compact wireless guitar system designed to deliver reliable, high-quality audio transmission in a portable and easy-to-use format. It brings together MOOER’s experience in modern guitar technology to provide a practical wireless solution for both live performance and practice.

Wireless Performance

The AIR P05 uses 2.4 GHz ISM wireless technology to deliver low-distortion, low signal-loss audio transmission. With an effective transmission range of up to 20 metres, it allows freedom of movement across stages and rehearsal spaces without compromising signal stability.

Four selectable channels provide reliable operation in environments with high wireless traffic, helping users avoid interference. Low latency and a wide dynamic range ensure accurate signal transmission, even when using high-gain tones or complex effects.

Power & Battery

An automatic sleep mode helps conserve battery life when the system is not in use. The built-in 400 mAh rechargeable battery provides up to 8 hours of continuous operation.

Charging is handled via USB using the included cable and can be powered from standard USB supplies or portable power banks, making it suitable for mobile use.

Design & Usability

Weighing just 85 g, the AIR P05 is compact and lightweight enough to fit easily into a gig bag or backpack. A simple control layout with a power switch and channel selection button ensures quick setup and straightforward operation.

Build & Application

Designed for regular use, the AIR P05 combines a minimalist design with durable construction. Its reliable performance and portability make it a practical wireless solution for guitarists looking to streamline their setup without sacrificing sound quality.

Highlights

• Wireless system for electric guitar transmission
• 2.4GHz ISM worldwide signal frequency band
• Low harmonic distortion and signal loss (<0.05% (1KHz@-10dbFS))
• Transmission Distance: 20 meters (outdoors)
• Four channel selections
• Low latency (approx. 7 milliseconds)
• Sensitive frequency response (20-20K Hz)
• High dynamic range (+1dB/-3dB)
• Automatic sleep mode for power-saving
• 8 hours of battery life
• 400 mAh battery capacity
• 1.5-hour charge time
• Uncompressed 16bit depth and 48KHz sampling rate
• Compact and highly portable (125mm x 30mm x 20mm)
• Lightweight (85g)
• ¼” guitar jack input
• USB C charging port
• Power switch
• LED channel and battery indicators
• Includes USB cable and user manual
